# Service setup

Installation guide for CREDEBL Platform Services

Before installing the CREDEBL Platform services, it is essential to ensure that your environment meets certain prerequisites. Properly setting up these requirements will help facilitate a smooth installation process and optimal performance of the platform. This includes preparing your system with the necessary software dependencies, configuring the required network settings, and ensuring adequate hardware resources. Following these guidelines will help prevent potential issues and ensure that the CREDEBL Platform services are installed and operate as intended.

## System requirements

Here is the list of software needed to get started:

* [Node.js](https://nodejs.org/en) and [npm](https://docs.npmjs.com/downloading-and-installing-node-js-and-npm) (>= 18)
* [Git](https://git-scm.com/) (>= 2.34.1)
* [Docker](https://docs.docker.com/engine/install/) (>= 24.0.5)
* [Docker Compose](https://docs.docker.com/compose/install/) (>= 2.20.3)

{% hint style="success" %}
The above can directly be installed from their respective docs or [from common prerequisites](/docs/getting-started/local-deployment.md#common-prerequisites)
{% endhint %}

***

## Prerequisites

Here is the list of prerequisites software we will need for CREDEBL:

* [Clone Repository](#clone-repository)
* [Environment Variables](#environment-variables)
* [PostgreSQL](#postgresql) (>= 14)
* [NATS](#nats) (>= 2.6.4)
* [REDIS](#redis) (>= 7.4)
* [Keycloak](#keycloak) (>= 25.0.6)
* [Sendgrid](#sendgrid)
* [Storage (AWS S3, RustFS, local)](#storage-aws-s3-rustfs-or-local-filesystem)
* [OpenBao secrets management](#openbao-secrets-management-optional) (optional)
* [Schema file server](#schema-file-server) (optional)
* [Agent Setup](#agent-setup)

### Clone Repository

Clone the platform repository from GitHub:

```sh
git clone https://github.com/credebl/platform.git
cd platform
```

### Environment Variables

To help you quick start, a `.env.demo` is already present at the root of the platform repository. To getting started, rename `.env.demo` to `.env`\
\
Please find `your-ip` in the `.env` file, and replace **all occurrences** it with your machine's Ip address.

{% hint style="info" %}
If you want to know more about the environment variables, please refer to `.env.sample` file which is given at root of the repository.
{% endhint %}

Apart from the already present variables, you need to add few variables generated from the below prerequisites like the [PostgreSQL](#postgresql), [Keycloak](#keycloak), [Sendgrid](#sendgrid), [Storage (AWS S3, RustFS, local)](#storage-aws-s3-rustfs-or-local-filesystem), etc at the respective steps.

### PostgreSQL

{% hint style="success" %}
In case you already have PostgreSQL preinstalled on your machine, you can simply skip the database setup and add the appropriate .env variable after creating user `postgres` and database `credebl` if not already created.
{% endhint %}

PostgreSQL is a powerful, open-source object-relational database system known for its robustness and advanced features. This guide provides instructions for installing and configuring PostgreSQL both natively and using Docker. Installing PostgreSQL

**Initially we'll need to install postures on the host or on docker**

{% tabs %}
{% tab title="Ubuntu" %}
{% code overflow="wrap" fullWidth="false" %}

```shell
sudo apt install postgresql

# To verify the status of the PostgreSQL service, use:

sudo systemctl status postgresql
```

{% endcode %}
{% endtab %}

{% tab title="Docker" %}

```sh
# Pull the PostgreSQL Docker image:
docker pull postgres

# Create a Docker volume to persist PostgreSQL data:
docker volume create CREDEBL
```

{% endtab %}
{% endtabs %}

Access the PostgreSQL and create user and database

{% tabs %}
{% tab title="Ubuntu" %}

```sh
# Access the PostgreSQL command line interface:
sudo -u postgres psql

# Create a new user and set password:
CREATE USER postgres WITH ENCRYPTED PASSWORD 'postgres';

# Create db:
CREATE DATABASE credebl;

# Grant all privileges on the database to the user
GRANT ALL PRIVILEGES ON DATABASE credebl TO postgres;
```

{% endtab %}

{% tab title="Docker" %}

```sh
# Run the PostgreSQL Docker container:
docker run --name CREDEBL -e POSTGRES_PASSWORD=postgres -d -p 5432:5432 -v CREDEBL:/var/lib/postgresql/data postgres

# Enter the container
docker exec -it CREDEBL psql -U postgres

# Create a db
CREATE DATABASE credebl;

# Grant all privileges on the database to the user
GRANT ALL PRIVILEGES ON DATABASE credebl TO postgres;

# List all databases to confirm
\l

# Exit the PostgreSQL prompt:
\q
```

{% endtab %}
{% endtabs %}

<details>

<summary>Optional: In case you customize the database details, you need to update this</summary>

Add the appropriate postgres environment variable to the `.env` file

{% code title=".env" overflow="wrap" %}

```sh
WALLET_STORAGE_HOST=your-ip
WALLET_STORAGE_PORT=5432 # postgres port
WALLET_STORAGE_USER='postgres' # postgres user
WALLET_STORAGE_PASSWORD='postgres' # postgres password

# The format for below is as follows: postgresql://{postgres.user}:{postgres.password}@{your-ip}:{postgres.port}/{database-name}
POOL_DATABASE_URL="postgresql://postgres:postgres@your-ip:5432/credebl"
DATABASE_URL="postgresql://postgres:postgres@your-ip:5432/credebl"
```

{% endcode %}

{% hint style="info" %}
You can read more about prisma connection URLs in PostgreSQL here: <https://www.prisma.io/docs/orm/overview/databases/postgresql>
{% endhint %}

</details>

### NATS

The CREDEBL platform utilizes NATS for message-driven data exchange between its micro-services.

{% hint style="warning" %}
For default setup, you can skip NATS and REDIS configurations and [Continue here](#keycloak)
{% endhint %}

<details>

<summary>NATS configurations</summary>

1. **NATS Configuration File** (nats-server.conf)\
   The configuration file defines how the NATS server operates, including port assignments and WebSocket support.

{% code title="nats-server.conf" %}

```editorconfig
port: 4222
max_payload: 4194304  # 4 MB in bytes
websocket {
  port: 443
  no_tls: true
}
```

{% endcode %}

* **port:** The main port for NATS communication is set to 4222.
* **max\_payload:** Sets the maximum message payload size to 4 MB.
* **websocket:** Enables WebSocket support on port 443 without TLS (for unsecured communication).

2. **docker-compose.yml File**

* The docker-compose.yml file will define the NATS service, map the necessary ports, and bind the configuration file.

{% code title="docker-compose.yml" %}

```yaml
version: '3'
services:
  nats:
    container_name: nats
    image: nats
    command: ["-c", "/nats-server.conf"]
    ports:
      - '4222:4222'
      - '6222:6222'
      - '8222:8222'
    volumes:
      - ./nats-server.conf:/nats-server.conf:ro
```

{% endcode %}

{% hint style="warning" %}
Currently the [*.env.demo*](#environment-variables) already contains NATS keys and the local setup skips authorization for NATS messaging between services. Refer [here](https://docs.nats.io/running-a-nats-service/configuration/securing_nats/auth_intro/nkey_auth) to know more about NATS authorization
{% endhint %}

{% hint style="info" %}
To create your Nkeys, you can refer NATS tool nk as per their [official documentation](https://docs.nats.io/using-nats/nats-tools/nk)
{% endhint %}

* **container\_name:** Sets the name of the container to nats.
* **image:** Uses the official NATS Docker image.
* **command:** Passes the NATS configuration file to the container at startup.
* **ports:** Exposes three key ports:
  * `4222`: Main NATS client communication port.
  * `6222`: Routing port for NATS clusters.
  * `8222`: HTTP monitoring port for server statistics and health checks.
* **volumes:** Mounts the nats-server.conf configuration file into the container as read-only (ro).

3. **Start the NATS Server**

To start the NATS server, run the following command from the directory containing the docker-compose.yml file:

```sh
docker compose -f docker-compose.nats.yml up -d
```

</details>

### REDIS

The CREDEBL platform leverages Redis as an in-memory data store, primarily for caching and queuing.

{% hint style="warning" %}
You can skip REDIS setup if you are installing Platform services using docker. [Continue here](#keycloak)
{% endhint %}

<details>

<summary>REDIS configurations</summary>

To set up Redis for the CREDEBL platform, follow the steps below to create and launch a Redis instance using Docker.

1. **Create the docker-compose.yml File**\
   The docker-compose.yml file is used to define and configure the Redis container for the platform.

{% code title="docker-compose.redis.yml" %}

```yaml
version: '3'
services:
  redis:
    image: redis:6.2-alpine
    restart: always
    ports:
      - '6379:6379'
    command: redis-server --save 20 1 --loglevel warning
    volumes:
      - cache:/data

volumes:
  cache:
```

{% endcode %}

2. **Start REDIS Server**\
   Once the `docker-compose.redis.yml` file is in place, start the Redis service by running the following command:

```sh
docker compose -f docker-compose.redis.yml up -d
```

</details>

### Keycloak <a href="#keycloak" id="keycloak"></a>

#### Run Keycloak using Docker

```
docker run -d -p 8080:8080 \
-e KEYCLOAK_ADMIN=admin \
-e KEYCLOAK_ADMIN_PASSWORD=admin \
quay.io/keycloak/keycloak:25.0.6 start-dev
```

This command installs and starts Keycloak locally and makes it accessible at:

```
http://localhost:8080
```

***

#### Initial Keycloak Configuration

1. Open the Keycloak Administration Console.
2. Login using:
   * Username: `admin`
   * Password: `admin`
3. Click on the Keycloak dropdown at the top-left corner.
4. Create a new realm named:

```
credebl-platform
```

***

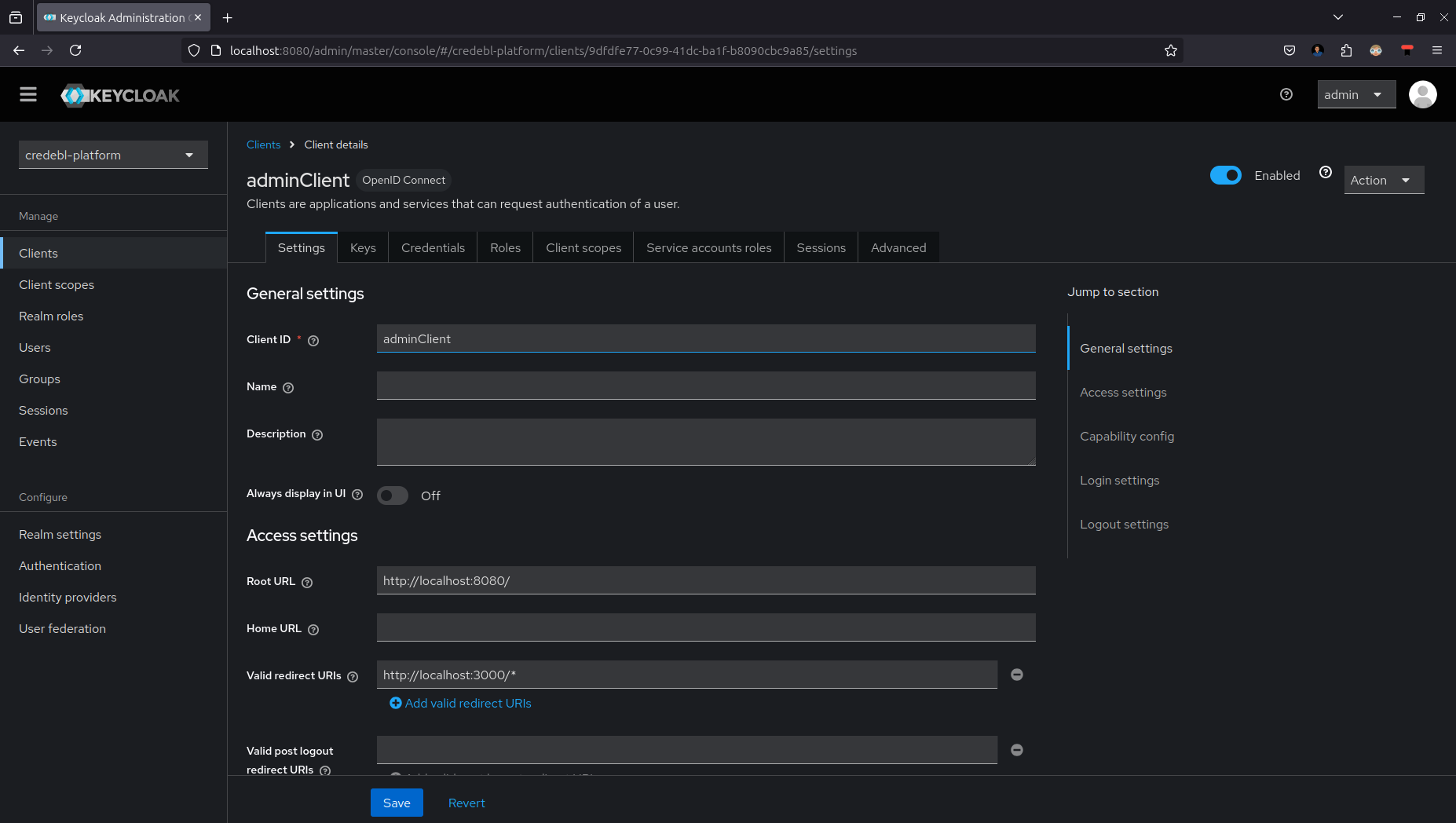

#### Create `adminClient`

1. Go to **Clients** under **Manage** from the left sidebar.
2. Click on **Create Client**.
3. Set:

```
Client ID = adminClient
```

4. Click **Next**.
5. Enable the following:
   * Client Authentication = ON
   * Service Accounts Roles = ON
   * Direct Access Grants = ON
6. Click **Next**.
7. Configure the following values:

* Valid Front end redirect URIs

```
http://your-url/*
```

Example: `http://localhost:3000/*`

* Root URL

```
http://your-url/
```

Example: `http://localhost:8080/`

* Web Origins

```
http://your-url/
```

Example: `http://localhost:8080/`

8. Save the client details.

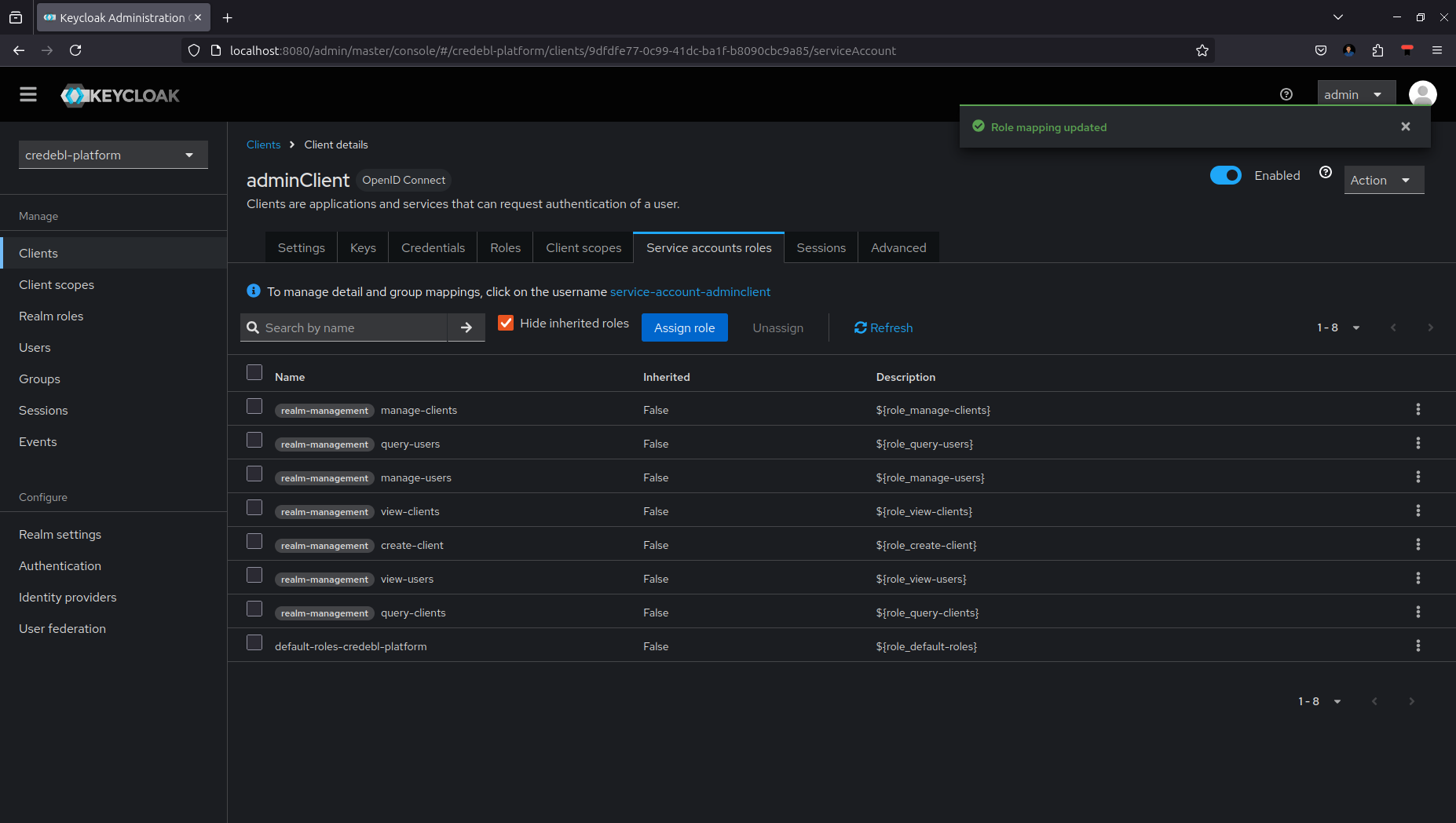

#### **Configure Service Account Roles for `adminClient`**

1. Open the `adminClient`.
2. Go to the **Service Account Roles** section.
3. Click on **Assign Role**.
4. Select **Filter by Clients** from the dropdown.
5. Assign the following roles:

```
create-client
manage-clients
manage-users
query-clients
query-users
view-clients
view-users
```

***

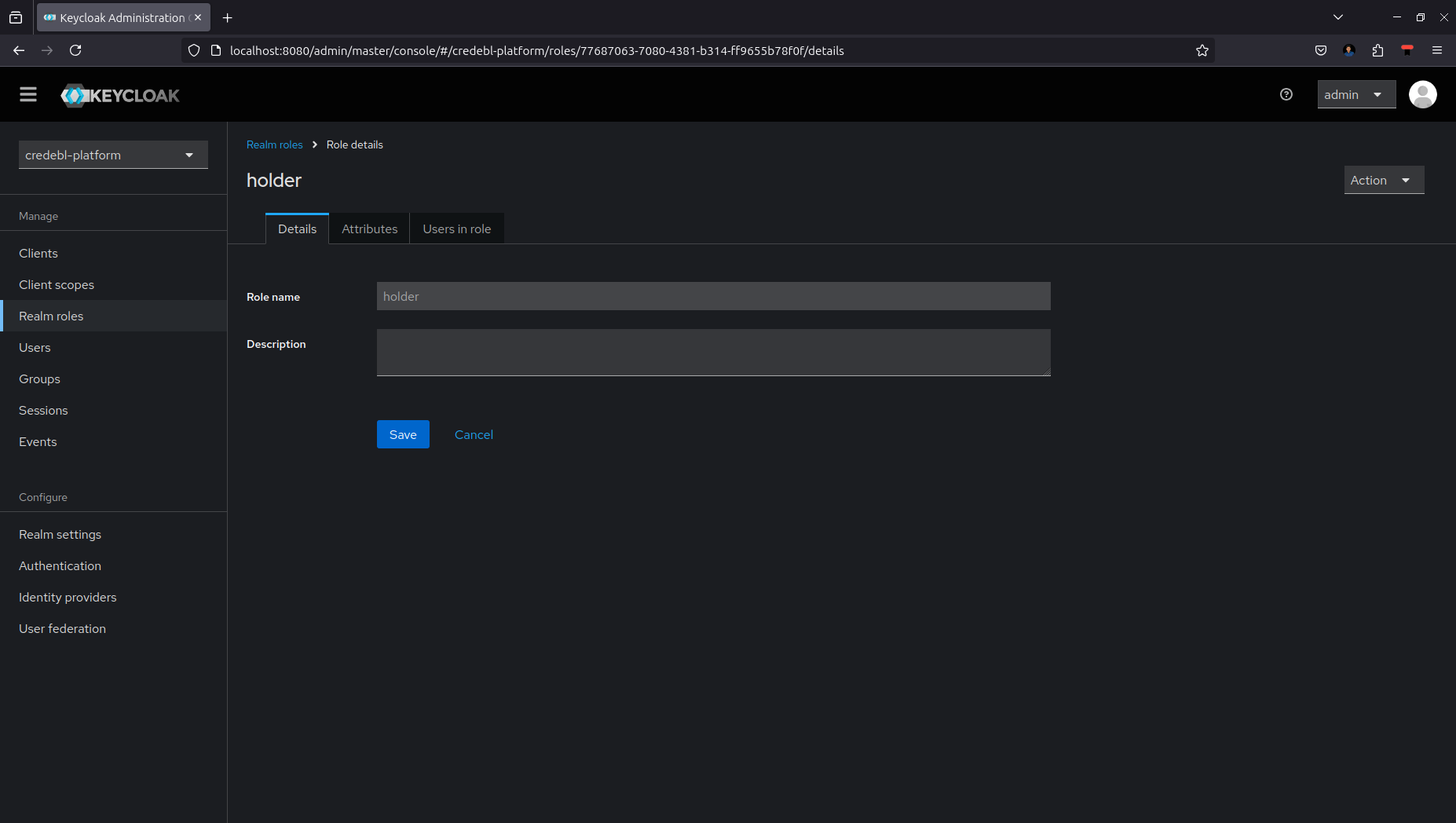

#### Realm Roles Settings

1. Under the `credebl-platform` realm, select:

```
Realm Roles
```

2. Click on **Create Role**.
3. Create a role with:

```
Role Name = holder
```

{% hint style="info" %}
When a new user registers on the platform we are assigning them a **“holder”** role from the realm.
{% endhint %}

#### **SSO Session Settings:**

Set SSO Session Idle to 2 days. This is the expiration time of the refresh token if the user is idle on the platform. We can configure this as per our need.\
To navigate to SSO Session, go to `Realm settings` option on left sidebar under `configure,` now under the `Sessions` tab you can see `SSO Session Idle.`\\

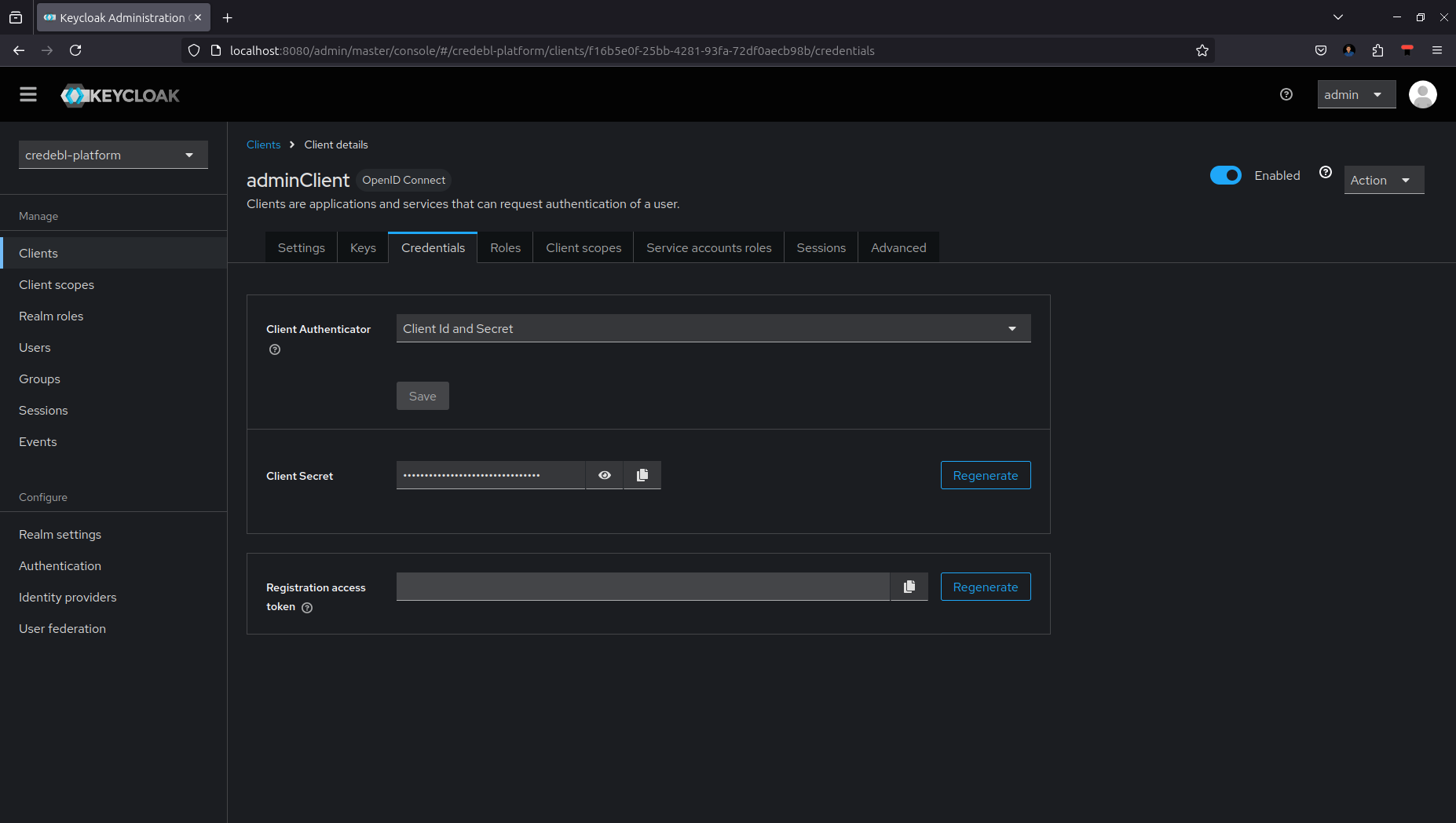

#### **Update the `.env`**

Update the `.env` file with the Keycloak endpoint details and both client credentials:

1. Go to the `credebl-platform` realm.
2. Navigate to **Clients** → `credeblClient`, open the **Credentials** tab, and copy the secret into `KEYCLOAK_MANAGEMENT_CLIENT_SECRET`.
3. Navigate to **Clients** → `adminClient`, open the **Credentials** tab, and copy the secret into `ADMIN_KEYCLOAK_SECRET`.

{% code title=".env" %}

```sh
KEYCLOAK_DOMAIN=http://localhost:8080/
KEYCLOAK_ADMIN_URL=http://localhost:8080
KEYCLOAK_MASTER_REALM=master
KEYCLOAK_REALM=credebl-platform

# credeblClient - used by the platform services
KEYCLOAK_MANAGEMENT_CLIENT_ID=credeblClient
KEYCLOAK_MANAGEMENT_CLIENT_SECRET=

# adminClient - used for platform administration
ADMIN_KEYCLOAK_ID=adminClient
ADMIN_KEYCLOAK_SECRET=
```

{% endcode %}

{% hint style="warning" %}
From `v2.2.0` onwards `KEYCLOAK_MANAGEMENT_CLIENT_ID` must be `credeblClient`, and both `ADMIN_KEYCLOAK_ID` and `ADMIN_KEYCLOAK_SECRET` must be set. `npx prisma db seed` stops with `Missing environment variable: ADMIN_KEYCLOAK_ID` when they are empty.
{% endhint %}

***

#### **Additional Keycloak Configuration for v2.2.0**

If you are installing or upgrading to `v2.2.0` or later, the platform needs a second client named `credeblClient` alongside `adminClient`. Fresh installations create it as described below; existing installations follow [Upgrading from a version before v2.2.0](#upgrading-from-a-version-before-v2.2.0).

#### Create `credeblClient`

1. Go to **Clients** under **Manage**.
2. Click on **Create Client**.
3. Set:

```
Client ID = credeblClient
```

4. Click **Next**.
5. Enable the following:
   * Client Authentication = ON
   * Service Accounts Roles = ON
   * Direct Access Grants = ON
6. Click **Next**.
7. Configure the same Redirect URIs, Root URL, and Web Origins used for `adminClient`.
8. Save the client details.

#### Configure Service Account Roles for `credeblClient`

1. Open the `credeblClient`.
2. Go to the **Service Account Roles** section.
3. Click on **Assign Role**.
4. Select **Filter by Clients** from the dropdown.
5. Assign the same roles configured for `adminClient`:

```
create-client
manage-clients
manage-users
query-clients
query-users
view-clients
view-users
manage-realm
```

***

#### Enable Unmanaged Attributes

1. Go to:

```
Realm Settings
```

2. Locate:

```
Unmanaged Attributes
```

3. If it is disabled, enable it.

***

#### Upgrading from a version before v2.2.0

Installations that predate `v2.2.0` stored `adminClient` as every user's Keycloak client. The seed script rewrites those stored values to the current `KEYCLOAK_MANAGEMENT_CLIENT_ID`.

1. Rename the existing `adminClient` to `credeblClient`, keeping its client secret and service account roles.
2. Check that the renamed client has the service account roles listed above, including `manage-realm`.
3. Create a new `adminClient` for platform administration and copy its secret into `ADMIN_KEYCLOAK_SECRET`.
4. Add the old client ID to the `.env`:

```env
PLATFORM_ADMIN_OLD_CLIENT_ID=adminClient
```

5. Run the seed from `libs/prisma-service`:

```sh
npx prisma db seed
```

The seed decrypts each user's stored client ID, replaces `adminClient` with `credeblClient`, and skips the platform admin user. Later seeds find no matching users, so the value can stay in the file.

{% hint style="danger" %}
Run the seed only after the clients are renamed and created. If you rename them afterwards, stored user client IDs point at a client that no longer exists.
{% endhint %}

<details>

<summary><strong>Optional: Add users manually</strong></summary>

This section provides guidance on adding users manually to the Keycloak realm.

1. Go to **users**.
2. Add **username**: [***your.email@your.domain***](mailto:your.email@your.domain) and **email**: [***your.email@your.domain***](mailto:your.email@your.domain).
3. Enable user and email, then click on **save**.
4. Change the password in the credential section for user login.
5. Update the Keycloak userId in the users table in the local database.
6. Also update the ***client secret key*** in the .env file, which you will get in the credential section of **adminClient** in the **client** section.
7. Test the flow by logging in to platform admin.

</details>

### **SendGrid**

Create a [SendGrid account](https://sendgrid.com/), generate an API key, and grant necessary permissions for sending emails.

{% hint style="info" %}
Make a note of the API-key as well as the email used, as this will be [later](#environment-variables)used in our `.env` and during [Installation](#installations)
{% endhint %}

* Add the send grid key in the `.env`

{% code title=".env" %}

```sh
SENDGRID_API_KEY=your-API-key
```

{% endcode %}

### Storage (AWS S3, RustFS, or local filesystem)

To use all CREDEBL functionality, the platform stores files in three buckets:

1. Organization logo, during organization creation and update
2. Bulk issuance of credentials
3. Connection URL objects generated by the agent, used to create shortened URLs

{% hint style="info" %}
Buckets 1 and 2 can be skipped if you do not use organization logos or bulk issuance. The shortened-URL bucket is required for organization connections.
{% endhint %}

#### Choose a storage type

Set `FILE_STORAGE_TYPE` in your `.env` file:

```env
FILE_STORAGE_TYPE=aws
```

| Value    | What it does                                       | What you need                                                        |
| -------- | -------------------------------------------------- | -------------------------------------------------------------------- |
| `aws`    | Stores files on Amazon S3                          | AWS account, credentials, and the three buckets                      |
| `rustfs` | Stores files on a RustFS (S3-compatible) server    | RustFS endpoint, credentials, and the three buckets                  |
| `local`  | Stores files on the API gateway's local filesystem | No cloud credentials; bucket names must match the served directories |

{% hint style="info" %}
`aws` is the default when `FILE_STORAGE_TYPE` is not set. The platform does not create buckets; create `FILE_SHARING_BUCKET`, `ORG_LOGO_BUCKET_NAME`, and `STOREOBJECT_BUCKET` on the target storage before starting the services.
{% endhint %}

#### Option 1: AWS S3 (`FILE_STORAGE_TYPE=aws`)

Fill in these variables:

{% code title=".env" %}

```sh
# 1. Used for Adding org-logo during org creation and update
# Optional (Can be skipped if no image is added during org creation and updation)
AWS_PUBLIC_ACCESS_KEY=
AWS_PUBLIC_SECRET_KEY=
AWS_PUBLIC_REGION=
ORG_LOGO_BUCKET_NAME=

# 2. Used for Bulk issuance of credential
# Optional (Can be skipped if Bulk issuance is not used)
AWS_ACCESS_KEY=
AWS_SECRET_KEY=
AWS_REGION=
FILE_SHARING_BUCKET=

# 3. Used for storing connection URL generated from Agent and creating shortened URL
# Required (As connecting to org requires Shortened url)
AWS_S3_STOREOBJECT_ACCESS_KEY=
AWS_S3_STOREOBJECT_SECRET_KEY=
AWS_S3_STOREOBJECT_REGION=
STOREOBJECT_BUCKET=
```

{% endcode %}

Use `STOREOBJECT_BUCKET` to build the shortened URL domain. Follow the [AWS S3 path style](https://docs.aws.amazon.com/AmazonS3/latest/userguide/VirtualHosting.html#path-style-access) for your bucket.

{% code title=".env" overflow="wrap" %}

```sh
# Please refere AWS to determine your bucket url
# https://docs.aws.amazon.com/AmazonS3/latest/userguide/VirtualHosting.html#path-style-access
SHORTENED_URL_DOMAIN='https://s3.AWS_S3_STOREOBJECT_REGION.amazonaws.com/STOREOBJECT_BUCKET'
```

{% endcode %}

{% hint style="info" %}
Note: Usually, `SHORTENED_URL_DOMAIN` for bucket names with dot ( . ) in it comes after '/': `https://s3.AWS_S3_STOREOBJECT_REGION.amazonaws.com/bucket-name`. While others without a dot(.) are often referred as a subdomain: `https://`**`bucket-name`**`.AWS_S3_STOREOBJECT_REGION.amazonaws.com`
{% endhint %}

#### Option 2: RustFS (`FILE_STORAGE_TYPE=rustfs`)

{% code title=".env" %}

```sh
RUSTFS_ENDPOINT=http://localhost:9000
RUSTFS_ACCESS_KEY_ID=
RUSTFS_SECRET_ACCESS_KEY=

FILE_SHARING_BUCKET=
ORG_LOGO_BUCKET_NAME=
STOREOBJECT_BUCKET=
```

{% endcode %}

{% hint style="warning" %}
`RUSTFS_REGION` appears in `.env.demo` for parity but is not read by the RustFS client. Set `AWS_REGION`, `AWS_PUBLIC_REGION`, and `AWS_S3_STOREOBJECT_REGION` instead — the client takes its region from those.
{% endhint %}

`RustFsStorageService.getPublicUrl` returns `{RUSTFS_ENDPOINT}/{bucket}/{key}`, so the shortened URL domain must point at the RustFS host and bucket:

```env
SHORTENED_URL_DOMAIN='https://rustfs.example.com/STOREOBJECT_BUCKET'
```

{% hint style="info" %}
RustFS credentials are read from `process.env` only. Unlike the AWS S3 provider, the RustFS provider does not fetch credentials from OpenBao.
{% endhint %}

#### Option 3: Local filesystem (`FILE_STORAGE_TYPE=local`)

Local storage keeps files under `uploadedFiles/` in the API gateway container and is intended for single-node evaluation.

{% code title=".env" %}

```sh
FILE_STORAGE_TYPE=local
PLATFORM_URL=http://your-ip:5000

FILE_SHARING_BUCKET=bulk-verification-templates
ORG_LOGO_BUCKET_NAME=org-logo
STOREOBJECT_BUCKET=demo-shortening-url
SHORTENED_URL_DOMAIN='http://your-ip:5000/uploadedFiles/demo-shortening-url'
```

{% endcode %}

{% hint style="warning" %}
The API gateway serves only a fixed set of directories. `demo-shortening-url` is exposed at `/uploadedFiles/demo-shortening-url`; the logo directories are served from the gateway root. Use the demo bucket names as a starting point and confirm the generated URLs resolve in your deployment. Do not use `local` with more than one gateway replica.
{% endhint %}

#### Verify it works

1. Start the platform
2. Upload a file through the UI using the org logo update feature on dashboard for a quick check to see if its working.
3. Perform a bulk issuance to check if it stores the shortened url and uploaded csv to the storage.
4. Check that the file appears in the configured S3, RustFS, or local directory. Currently there are only 3 features that utilize the file storage in platform \[Organization logo storage , URL shortening for issuance , Csv upload for bulk issuance]

***

### OpenBao secrets management (optional)

[OpenBao](https://openbao.org/), the open-source fork of HashiCorp Vault, can hold the platform's secrets instead of plain `.env` values. Secrets are fetched on first use and cached per secret key for 10 minutes; each request times out after 10 seconds.

#### Quick start with the bundled stack

The platform repository ships a compose file, a server config, and an idempotent provisioning script:

```sh
docker compose -f docker-compose.openbao.yml up -d
./openbao-init.sh
```

`openbao-init.sh` initializes and unseals OpenBao, enables a KV-v2 engine at `secret/`, creates the `credebl-secrets` policy and the `credebl` AppRole, and writes the four credebl secret paths from your environment. On first run it prints `BAO_ROLE_ID`, `BAO_SECRET_ID`, the unseal key, and the root token. Keep the unseal key and root token safe - they are not needed in `.env`.

{% hint style="warning" %}
`docker-compose.openbao.yml` mounts `./config.hcl`. Keep that file in the repository root or the container fails to start. Data is persisted in the `openbao_data` volume.
{% endhint %}

#### Enabling OpenBao

{% code title=".env" %}

```sh
ENABLE_BAO=true
SECRETS_PROVIDER=openbao
BAO_URL=http://openbao:8200
BAO_SECRET_PATH=secret/data/credebl_resend_api_key
BAO_ROLE_ID=<your-approle-role-id>
BAO_SECRET_ID=<your-approle-secret-id>
```

{% endcode %}

`BAO_URL` must be reachable from every service container. Use the compose service name (`http://openbao:8200`) when the platform runs in the same compose network, or the host IP when services run on the host. `localhost` and `127.0.0.1` point at the service container itself.

`BAO_SECRET_PATH` is the bootstrap path read at startup, and its keys are injected into `process.env`. Set it to one of the credebl paths below; the demo uses `secret/data/credebl_resend_api_key`.

{% hint style="warning" %}
`.env.demo` ships with `ENABLE_BAO=true`. If you are not running OpenBao, set `ENABLE_BAO=false`. Otherwise startup tries to reach OpenBao and logs `Critical Lifecycle Boot Failure` before continuing with the `process.env` values. Secrets are fetched only when `ENABLE_BAO` is `true` and `SECRETS_PROVIDER` is `openbao`.
{% endhint %}

#### Secret paths

Paths are mapped in `libs/config/src/secret-storage/openbao.provider.ts`; the constants are defined in `libs/common/src/common.constant.ts`:

| Constant           | Path                                   | Used by                    |
| ------------------ | -------------------------------------- | -------------------------- |
| `RESEND_API_KEY`   | `secret/data/credebl_resend_api_key`   | `resend-helper-file.ts`    |
| `SMTP_CONFIG`      | `secret/data/credebl_smtp_config`      | `smtp-helper-file.ts`      |
| `SENDGRID_API_KEY` | `secret/data/credebl_sendgrid_api_key` | `send-grid-helper-file.ts` |
| `AWS_KEY`          | `secret/data/credebl_aws_keys`         | `s3-storage.provider.ts`   |

Each path returns a flat key-value map. For example, `secret/data/credebl_smtp_config` should contain:

```json
{
  "SMTP_HOST": "smtp.example.com",
  "SMTP_PORT": "587",
  "SMTP_USER": "user@example.com",
  "SMTP_PASS": "your-password"
}
```

***

#### OpenBao UI configuration (generic KV-v2 setup)

This guide covers how to set up a KV (Key-Value) Version 2 secrets engine, add arbitrary secret paths, and configure policies using the OpenBao Web Interface.

#### Step 1: Enable the KV-v2 Secrets Engine

1. Log in to your OpenBao Web Interface (typically `http://localhost:8200`).
2. In the left navigation menu, click Secrets Engines.
3. Click Enable new engine + in the top-right corner.
4. Under the Generic section, select KV.
5. Click Next.
6. Configure the engine settings:
   * Path: Set your desired mount path (e.g., `secret`).
   * Expand Method Options.
   * Version: Select Version 2.
7. Click Enable Engine.

> Note on Paths: Mounting a KV-v2 engine at `secret` automatically prefixes underlying API paths with `/data/`. A path entered as `credebl_smtp_config` in the UI is accessed via HTTP at `secret/data/credebl_smtp_config`.

#### Step 2: Create Secret Paths

To store key-value pairs under your secrets engine:

1. Click on your mounted secrets engine (e.g., `secret/`).
2. Click Create secret + in the top-right corner.
3. Complete the form:
   * Path for this secret: Enter your identifier (e.g., `credebl_smtp_config` or `credebl_aws_keys`).
   * Secret data: Enter your key-value pairs (e.g., `KEY_NAME` = `value`).
   * Click Add row to add additional pairs to the same path.
4. Click Save.

#### Step 3: Configure Access Policies

To allow applications or roles to read the secrets:

1. Go to Policies in the left sidebar menu.
2. Click Create ACL policy +.
3. Enter a Name for your policy (e.g., `credebl-secrets`).
4. Enter the HCL policy definition granting read capabilities:

```hcl
# Allow read capabilities on the credebl secret paths
path "secret/data/credebl_*" {
  capabilities = ["read"]
}

path "secret/metadata/credebl_*" {
  capabilities = ["read", "list"]
}
```

5. Click Create policy.
6. Attach this policy to your preferred auth method (AppRole, Kubernetes, OIDC, etc.) under Access -> Auth Methods.

{% hint style="info" %}
`openbao-init.sh` creates the same policy and an AppRole named `credebl` automatically. Use the UI steps only when you provision OpenBao yourself.
{% endhint %}

***

### Schema File Server

#### Clone Repository

Clone the platform repository from GitHub:

```sh
git clone https://github.com/ayanworks/schema-file-server.git
cd schema-file-server
```

#### Environment Variables

To help you quick start, a `.env.demo` is already present at the root of the platform repository. To getting started, rename `.env.demo` to `.env`\
\
Please find `JWT_TOKEN_SECRET` in the `.env` file and replace its value with a base64-encoded JWT token.

{% hint style="info" %}
Note: You can create JWT Token using the following command:\
**node -e "console.log(require('crypto').randomBytes(32).toString('hex'))"**
{% endhint %}

#### Service Setup

1. **Build the Docker Image**

   ```bash
   docker build -t schema-file-server .
   ```
2. **Run the Docker Container**

   ```bash
   docker run -d --env-file .env -p 4000:4000 -v "$PWD/app/schemas:/app/schemas" --name schema-file-server schema-file-server
   ```

   * `-d`: Run container in detached mode
   * `--env-file .env`: Load environment variables from the `.env` file
   * `-p 4000:4000`: Map host port 4000 to container port 4000
   * `-v "$PWD/app/schemas:/app/schemas"`: Mount the local `app/schemas` directory into the container
   * `--name schema-file-server`: Assign a name to the container
   * `schema-file-server`: The name of the Docker image

#### Update .env and agent.env

* Update the schema file server token and URL in both the .env and agent.env files.

{% code title=".env" %}

```
SCHEMA_FILE_SERVER_URL='http://localhost:4000/schemas/'
SCHEMA_FILE_SERVER_TOKEN=
```

{% endcode %}

{% code title="agent.env" %}

```
SERVER_URL='http://localhost:4000'
FILE_SERVER_TOKEN=
```

{% endcode %}

### Agent Setup

The Docker image built during this process is used to launch agents for new organizations on the CREDEBL platform.The Docker image name is set as an environment variable during the platform setup in a later step.

The default image for agents is `ghcr.io/credebl/credo-controller:latest`. It tracks the latest production release of the credo-controller. Refer here: <https://github.com/credebl/credo-controller/pkgs/container/credo-controller>

<details>

<summary>Optional: In case you want to build your own image for the agent</summary>

{% hint style="danger" %}
Note: Currently to have agent setup(image built), we need node version to be - `18.19.0`\
However, we are actively seeking contributions to update it to the Latest Stable Version, you can check the open issue [here](https://github.com/credebl/credo-controller/issues/267)
{% endhint %}

* Clone the following repository:

```sh
git clone https://github.com/credebl/credo-controller
cd credo-controller
```

* Use following commands to install and upgrade Yarn:

```sh
npm install -g yarn
```

* To install the dependencies use following command:

```sh
yarn
```

* Build Agent controller using the following command:

```sh
yarn build
```

* Create Docker Image using following command :

```sh
docker build . -t credo-controller-0.5.3:latest
```

{% hint style="info" %}
Mention credo controller version or any tag name. Note the same version will also be needed in the `.env` against the variable `AFJ_VERSION`
{% endhint %}

* Add the Docker Image tag in the `.env`

{% code title=".env" %}

```sh
AFJ_VERSION=credo-controller-0.5.3:latest
```

{% endcode %}

</details>

### SSO (Single Sign-On) (Applicable for V 2.1.0 onwards)

* If applications consuming CREDEBL want to use SSO feature, additional environment variables need to be set on the backend side as well.Please refer to the `env.demo` file for the required values when running the Platform.
* As part of session management, for users who want to use the client ID / client secret based token generation feature, we have updated the response to include cookies.\
  Using these cookies, users can fetch their session details.
  * To fetch the session details, call the following API while passing the stored cookies in the request headers`:`
    * `/auth/sessionDetails`
* For more details visit this - [https://docs.credebl.id/docs/\~/revisions/IXcpHdsfgTsukxV376wG/references/releases/v.2.1.0](https://docs.credebl.id/docs/~/revisions/IXcpHdsfgTsukxV376wG/references/releases/v.2.1.0#sso-single-sign-on)

## Installations

Make sure the `.env` file is set with all the required environment variables as per the sample file and the [env guide](#environment-variables) give above.

Before you start the services make sure to update the `credebl-master-table.json` present at location, `libs/prisma-service/prisma/data` [sendgrid](#sendgrid) details as well as your `ip-address`

<pre class="language-json" data-title="credebl-master-table.json" data-line-numbers><code class="lang-json">{
  "platformConfigData": {
    "externalIp": "192.168.x.x",
    "inboundEndpoint": "192.168.x.x",
    "username": "credebl",
    "sgApiKey": "API-key-received <a data-footnote-ref href="#user-content-fn-1">here</a>",
    "emailFrom": "Mail used in sendgrid",
    "apiEndpoint": "http://192.168.x.x:5000",
    "tailsFileServer": "http://192.168.x.x:5000"
  },
</code></pre>

At the root of the [platfrom repo](#clone-repository):

```sh
cd libs/prisma-service
npx prisma generate
npx prisma migrate deploy
```

Now seed the db, before starting the services using the following:

```sh
npx prisma db seed
```

Since, you are in the '/prisma-service', move back to the root

<pre class="language-sh"><code class="lang-sh"><strong>cd ../..
</strong></code></pre>

Start the services:

{% tabs %}
{% tab title="Docker setup" %}

```
docker compose -f docker-compose-dev.yml up -d
```

<details>

<summary>To start container from pre-built docker images</summary>

In case we want to start services using the latest images from CREDEBL you can start services using the following command:

```
docker compose up -d
```

</details>
{% endtab %}

{% tab title="pnpm setup" %}
Install the pnpm package using the following command if it isn’t already installed on your machine:

```
npm install -g pnpm
```

Install dependencies

```
pnpm i
```

To start the API gateway

```
pnpm run start
```

To start all microservices using below command followed by microservice name, example: start user service.

```
pnpm run start user
```

<details>

<summary>Services are as follows</summary>

utility\
connection\
ledger\
organization\
agent-provisioning (Only required once when provisioning base-wallet)\
agent-service\
issuance\
verification\
(Below are optional services)\
webhook\
geolocation\
notification\
cloud-wallet

</details>
{% endtab %}
{% endtabs %}

Access the Platform API by navigating to <http://localhost:5000>

[^1]: While setting up sendgrid
